Project overview

PROJECT VALUE

$200K

ON-SITE BUILD TIME

Four weeks

BUILDING DESIGNERS

Cactus Architects

PROJECT CONSULTANTS

BUC Services

BM Civil Engineers

Fowles Wine

Client/company

Fowles Wine is a boutique winery and restaurant that produce cool climate wines and provide an on-farm food and wine experience.

The brief

The owners of Fowles envisaged a unique space that would give customers a farm-to-table dining experience. To emulate this vision they decided to build a custom shed styled restaurant. Fowles also required the design and construction of a warehouse and yard cover.

Fowles Wine

Our scope and build details

  • Structural steel drawings.
  • Engineering certification and computations.
  • Structural concrete engineering.
  • Raft slab design for office.
  • 3D structural/shop steel drawings.
  • Fabricated hot dipped galvanised steel package.
  • Purlins and girts.
  • External steel cladding.
  • Guttering and above ground rainwater system.
  • Roof insulation.
    • Architectural bulkheads.
    • Structural glazing support beams.
Fowles Wine shed

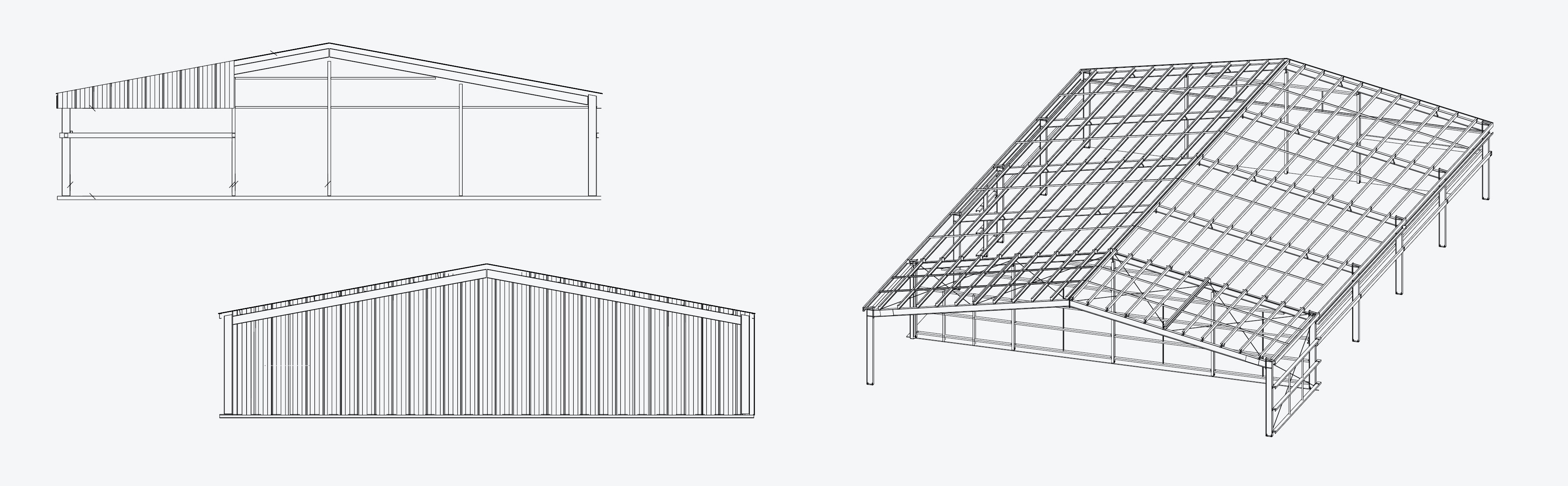

Fowles Wine winery shed drawings

Challenges and solutions

In order to bring architectural unity in the project, we needed to design and construct the restaurant building between two existing sheds. We constructed walkways to physically connect each building where large glazing areas were included in the walkways that required close attention to detail to ensure the glazing was supported and that the roof insulation met requirements of a public building.

We collaborated closely with the client's architect at the design stage to ensure the restaurant was fit for purpose and a practical solution.

Fowles Wine winery shed
