Project value

$250 - $300k

On-site build time

Six weeks

Building dimensions

61m x 21m x 5m high

32m x 8m x 4m high

Project collaborators

RKTech Studio

Flinders equestrian complex

Client/company

A boutique private use equestrian training centre located in Flinders, Victoria.

The brief

Our client required a full size competition dressage indoor arena that was safe for both rider and horse and provided protection from prevailing weather conditions. The complex needed to include an eight stall stable complex incorporating a tack room, wash down, feed room and tie ups. Ensuring the complex was fit for purpose and had room for future growth was a critical requirement.

Our scope and build details

      • Structural steel drawings, engineering certification and computations.
      • Structural concrete engineering including raft slab design for office.
      • 3D structural/shop steel drawings.
      • Fabricated hot dipped galvanised steel package.
      • Purlins and girts.
      • External steel cladding.
      • Internal structural walls.
      • Industrial roller shutters and sliding doors.
      • Industrial fire egress compliant access doors.
      • Guttering and rainwater systems.
      • Foundations.
      • Class 10a Building permit.

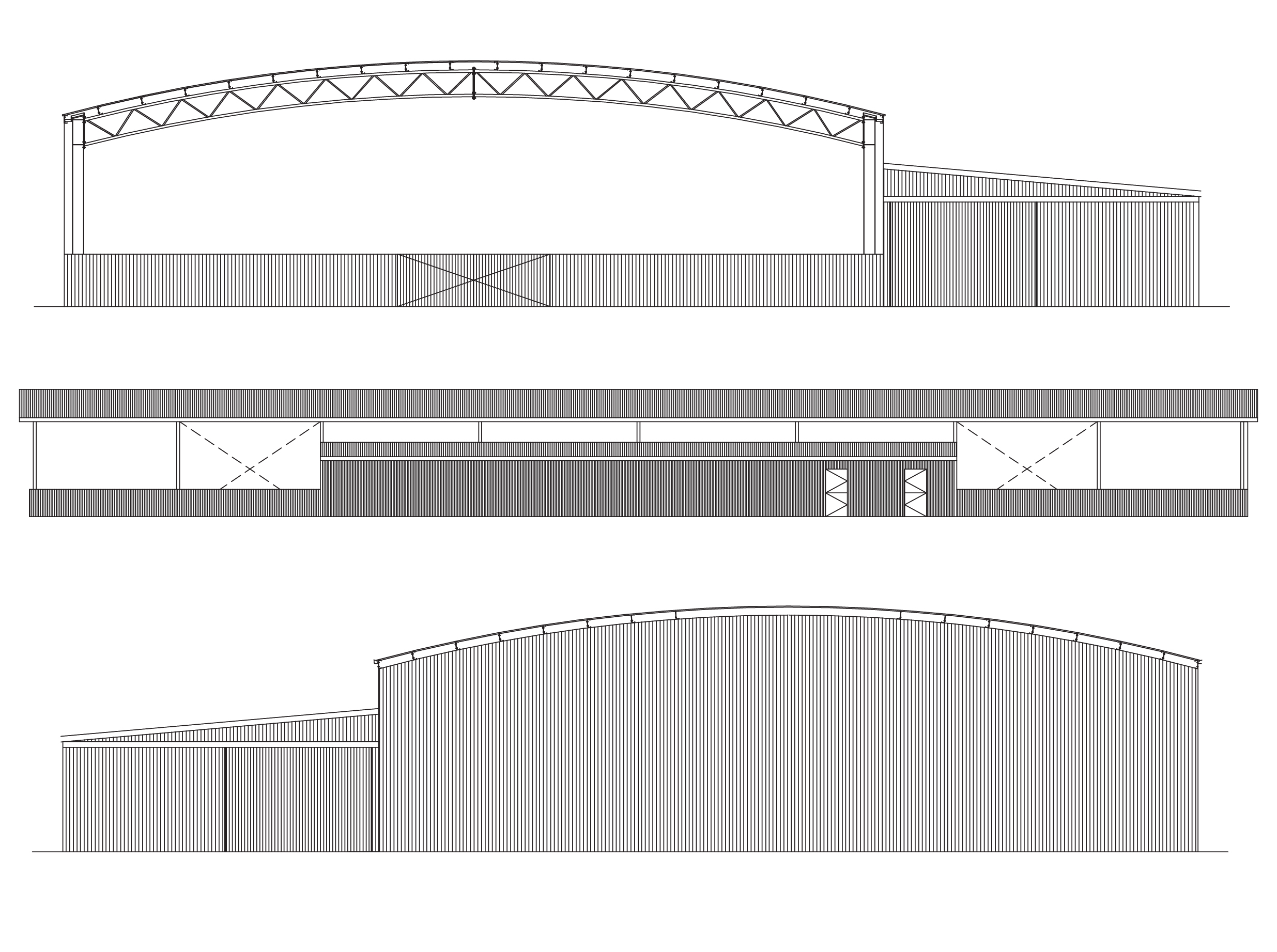

Flinders indoor arena and stable drawings
Flinders equestrian complex

Challenges and solutions

The design of the indoor arena was carefully considered so as not to inhibit neighbor's views. We liaised with our client to find the best functional and aesthetical result for their situation, being a curved roof.

Equinarail was installed around the indoor arena's perimeter to provide protection from potential safety hazards (i.e. structural columns) on the sides of the arena.

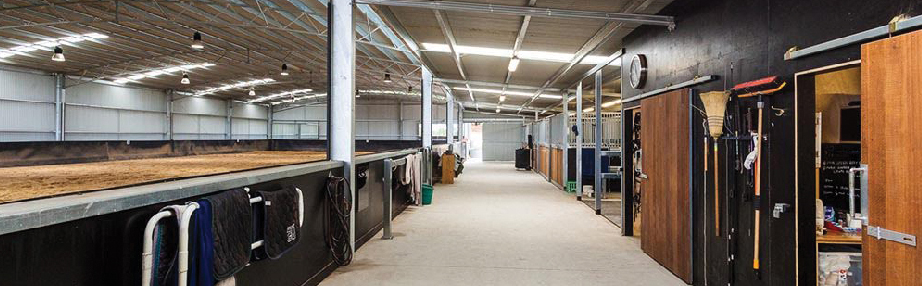

Flinders indoor arena and stable
