Project overview

PROJECT VALUE

$400k - $500k

ON-SITE BUILD TIME

Fifteen weeks

BUILDING DIMENSIONS

84m x 24m x 5m

PROJECT COLLABORATORS

MKM Constructions

Geotech and Fire Engineer

Charlton Park club rooms

Client/company

Charlton Park club rooms is a sporting precinct and community hub for the Charlton township. It's home to the Angling, Cricket, Football, Harness Racing, Hockey, Netball and Tennis Clubs, the Charlton Agricultural and Pastoral Society, a nine hole golf course and the Charlton Pony Club.

The brief

The Charlton Park board approached us with an idea for a large sports pavilion including function rooms, change rooms, toilets, storage area, kitchen and canteen, bar, and an entry/reception area.

Charlton Park clubrooms

Our scope and build details

    • Structural steel drawings, engineering certificate and computations.
    • Structural concrete engineering including slab design.
    • 3D structural/shop steel drawings.
    • Fabricated hot dipped galvanised steel package.
    • Purlins and girts.
    • Roof cladding and cappings.
    • Framed out door openings.
    • Eaves.

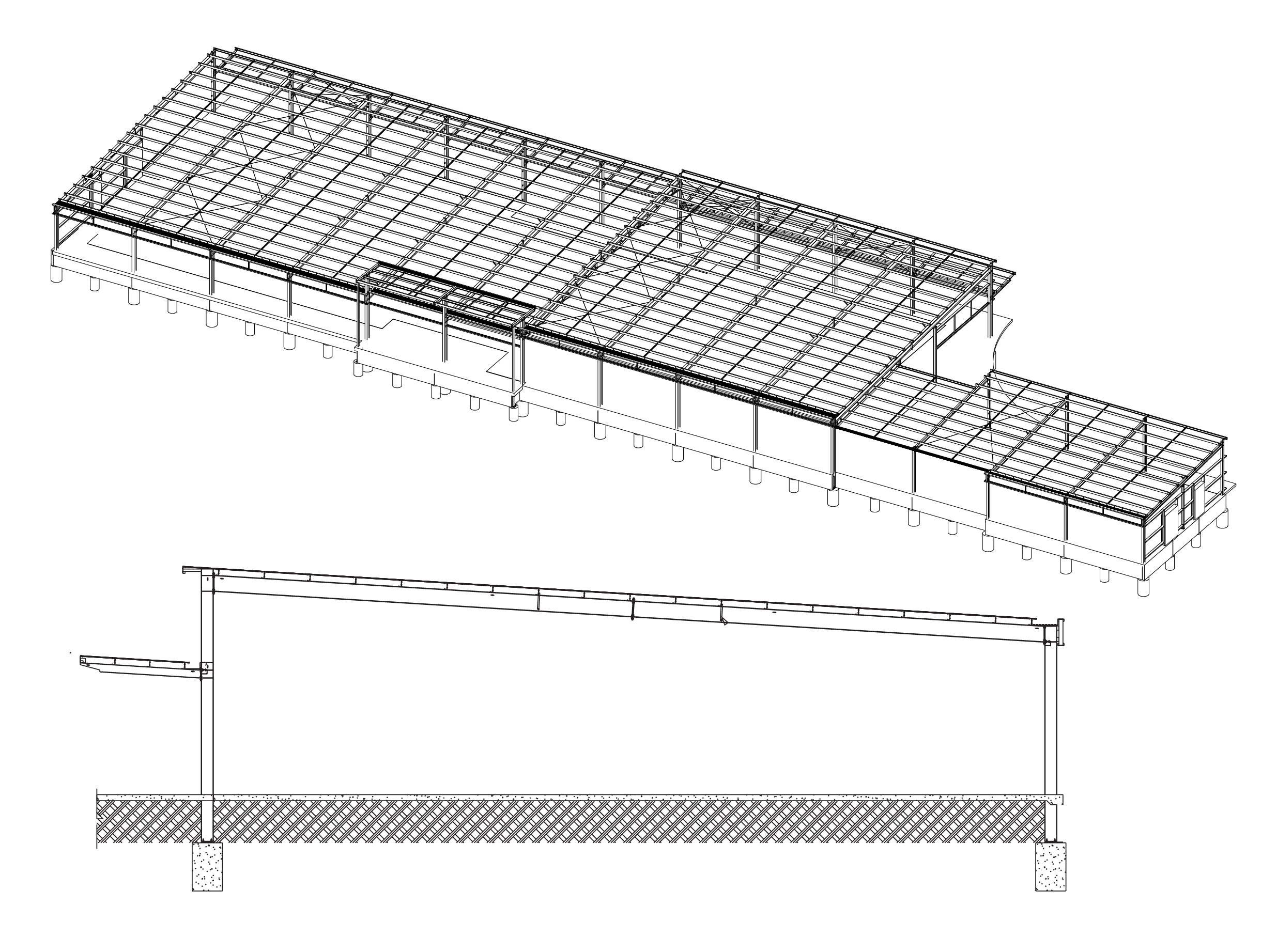

Charlton Park club rooms drawings
Charlton Park

Challenges and solutions

We collaborated closely with MKM Constructions who was managing the project as commercial builder throughout the design stages. It was necessary to ensure all architectural details were taken account of in the structural steel design.

As the building site was identified as flood-prone, we designed the structural frame with extended columns that allowed for retaining walls installed to raise the building floor level.

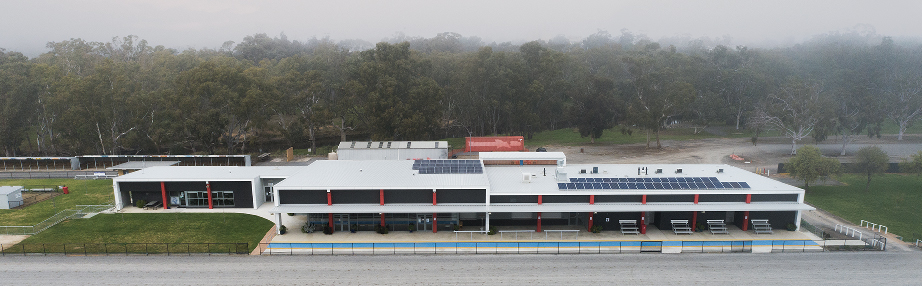

Charlton Park club rooms
